Domestic Immersion Heater Thermostats
Rod thermostats are available in two main types: Control only, and Combination Control & Cut-Out
Both are used in domestic immersion heaters, and are made in three stem lengths (measured underneath the head) of 7” (178mm), 11” (279mm), and 18” (457mm).
Both have 7.5mmØ stems, designed to fit into a 5/16” (7.9mm) i.d tube. The control thermostats are factory pre-set at 60°C and should be used in conjunction with a separate over-temperature device in domestic applications.
The combination types have two separate sets of contacts, one adjustable and one factory set, giving a one piece compliance with IS/EN 60335-2-73.

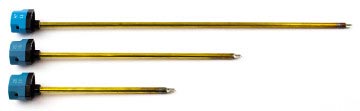

Control Only
*7.5mm Stem Diameter
| Product Code | Stem Length | Range °C | Pre-set °C | Cut-out °C | Current Rating |
|---|---|---|---|---|---|
| WH14 | 7″ | 40-80° | 60° | N/A | 15A |
| WH15 | 11″ | 40-80° | 60° | N/A | 15A |
| WH16 | 18″ | 40-80° | 60° | N/A | 15A |
Control & Cut-Out
*7.5mm Stem Diameter
| Product Code | Stem Length | Range °C | Pre-set °C | Cut-out °C | Current Rating |
|---|---|---|---|---|---|
| WH14CH | 7″ | 0-65° | N/A | 89° | 16A |
| WH15CV | 11″ | 0-65° | N/A | 89° | 16A |
| WH16CV | 18″ | 0-65° | N/A | 89° | 16A |

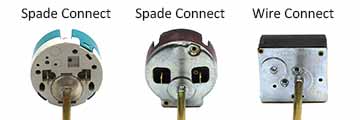

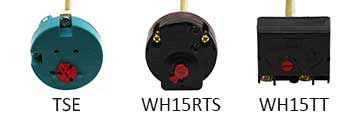

Replacement Thermostats
*6mm Stem Diameter
| Product Code | Stem Length | Range °C | Pre-set °C | Cut-out °C | Current Rating |
|---|---|---|---|---|---|
| TSE | 11″ | 10-70° | N/A | 80° | 16A |
| WH15RTS | 11″ | 10-70° | N/A | 90° | 16A |
| WH15TT | 11″ | 10-65° | N/A | 75° | 16A |
| Elemex domestic immersion thermostats are available in all good electrical wholesalers and builders merchants. Alternatively, you can email us for your nearest stockist. |
|---|
