Single Immersion Heaters
Single element immersion heaters are used in mainly horizontal orientation in domestic water cylinders. All heaters are fitted with a control thermostat pre-set at 65⁰C and a re-settable high limit cut-out to prevent the water reaching 98°C (in accordance with IS/EN60335-2-73). We offer heaters in several thread sizes, to fit all commonly used water cylinders, and in three different sheath materials, to suit various water qualities.

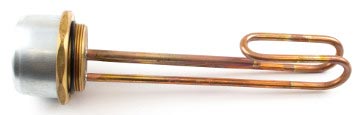

Copper
*Internal Reset Button

| Product Code | Thread Size | Length | Rating | Mounting |
|---|---|---|---|---|
| WH2B | 2¼”BSP | 11″ | 2.85kW | Horizontal |
Incoloy
*Internal Reset Button

| Product Code | Thread Size | Length | Rating | Mounting |
|---|---|---|---|---|
| SWH38/UV/825 | 1½”BSP | 14″ | 2.85kW | Horizontal |
| WH38/UV | 1½”BSP | 11″ | 2.85kW | Horizontal |
| SWH61 | 1¾”BSP | 14″ | 2.85kW | Horizontal |
| WH61 | 1¾”BSP | 11″ | 2.85kW | Horizontal |
| BIS11E | 2¼”BSP | 11″ | 2.85kW | Horizontal |
Titanium
*Internal Reset Button

| Product Code | Thread Size | Length | Rating | Mounting |
|---|---|---|---|---|
| WH38/UVT | 1½”BSP | 11″ | 2.85kW | Horizontal |
| WH60T | 1¾”BSP | 11″ | 2.85kW | Horizontal |
| BTS11E | 2¼”BSP | 11″ | 2.85kW | Horizontal |
| BTS27E | 2¼”BSP | 27″ | 2.85kW | Vertical |
| Elemex single element immersion heaters are available in all good electrical wholesalers and builders merchants. Alternatively, you can email us for your nearest stockist. |
|---|
